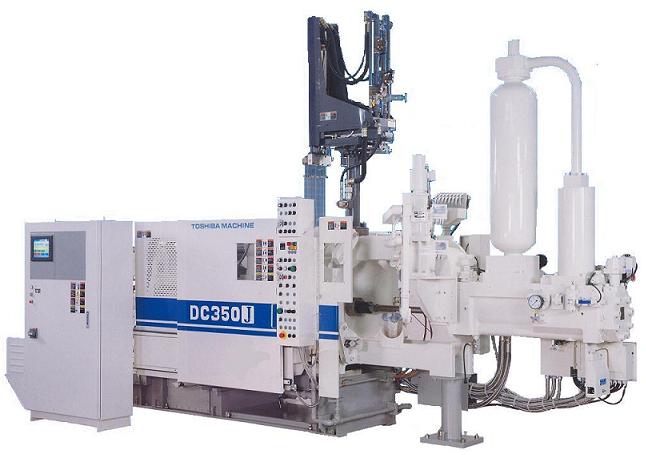

Toshiba Die Casting Machine

            The Toshiba Machine Co. Ltd., one of the world’s leading machine manufacturer, contributes greatly to the advancement of the die casting industry with their state-of-the art technology. Toshiba Machine’s total engineering ensures total balance, safety, reliability, easy maintenance, and stabilized high production quality by offering not only a broad range of die-casting machines, but also the peripheral equipment and control unit.

J-SX Series: New standard machine introduced by Toshiba Machine with improved injection capability and new die casting machine total touch screen controller (CASTEYE). Assembled in factory of Shanghai Toshiba Machine Co. Ltd. with effort to reduce the machine price at the same time maintains machine quality.

J-SC Series: 100% made in Japan standard machine with improved injection capability and new die casting machine total touch screen controller (CASTEYE).

J-MS Series: Acceleration and deceleration function by hydraulic servo valve with high speed injection and whole area real-time feedback control by new version of touch screen controller TOSCAST-555. Multistage injection functions get the machines ready for various dies and better quality out put.

J-MH Series: Super-high-speed die casting machine equipped with servo valve and whole area real-time feedback control by new version of touch screen controller TOSCAST-555.Target for more precise and complex parts with high quality out put



02DC250350JSX-0203-smalledit









Series

Model

Die Locking Force (kN)

Platen Dimension (mm)

Dry Shot Injection Speed (m/s)

Injection System

Control System

J-SX

DC135J-SX

1350

680 x 680

0.05 ~ 7

Logical Valve

Cast Eye

DC250J-SX

2500

850 x 850

DC350J-SX

3500

935 x 935

J-SC

DC500J-SC

5000

1060 x 1060

0.05 ~ 7

Logical Valve

Cast Eye

DC650J-SC

6500

1200 x 1200

DC800J-SC

8000

1400 x 1400

J-MS

DC250J-MS

2500

850 x 850

0.05 ~ 8

Hydraulic Servo Valve Multistage Injection

TOSCAST

DC350J-MS

3500

935 x 935

0.05 ~ 6.5

DC500J-MS

5000

1060 x 1060

0.05 ~ 8

DC650J-MS

6500

1200 x 1200

0.05 ~ 7

DC800J-MS

8000

1400 x 1400

0.05 ~ 6.5

J-MH

DC250J-MH

2500

850 x 850

0.05 ~ 13.0

Hydraulic Servo Valve Multistage Injection

TOSTCAST

DC350J-MH

3500

935 x 935

0.05 ~ 12.0

DC500J-MH

5000

1060 x 1060

0.05 ~ 12.0

DC650J-MH

6500

1200 x 1200

0.05 ~ 10.5

DC800J-MH

8000

1400 x 1400

0.05 ~ 10.0

>> Post Us An Enquiry



  Updated: April 2012
